The FPC High-Speed Laser Drilling Equipment is developed for high-speed, high-precision drilling applications on flexible boards and rigid-flex boards. It features high precision, high efficiency, micro-hole processing, and easy model changing as well as contour cutting and coverlay cutting capabilities.
Items | Equipment technical specifications: | |
Optical path: | Light source | UV |
| Laser wavelength | 355nm |
| Average power | >15W |
| Focus light spot size | <15um |
Whole machine processing performance | Galvanometer maximum scanning range | 40x40mm |
| Processing method (such as splicing, linkage, etc.) | Linkage/splicing optional |
| System overall processing precision | <±25um cpk>1.67 |
| Adsorption platform maximum range | 620mmx520mm |
| Power monitoring module | Yes |
| Equipment dimensions (L*W*H) | 1500*1600*1800mm |
| Processing drawing file handling | DXF, Drill |
Equipment performance index | Laser light spot: | <15um |
| Processing efficiency | >300 holes/s |

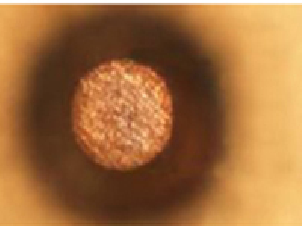

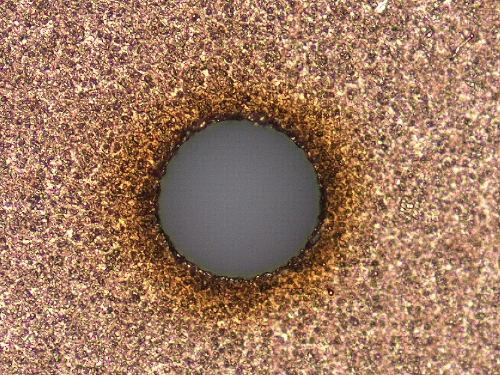

| Processing quality: | 90% true roundness, plating greater than 80% |
| Processing pattern: | Round holes, special-shaped holes |
Operation convenience - Visual drawing file editing; new template cab be made as fast as 5-10 minutes.
High-efficiency processing - High-speed, high-precision flying drilling processing, and software optimization for the shortest path algorithm. Its through-hole processing efficiency can be improved by 20% compared with that of conventional equipment.
Rich functions - Multiple products can be simultaneously positioned and processed and traceability marking on the board edge can be customized.
Multifunctional software - Support whole board/zone positioning processing, authority level management and other functions.
High security - Equipped with a mechanical security system, electrical stability system, including security grilles, door magnetic switches, UPS, stabilizers, etc.
Equipment expansion - Support RTR extension for efficient automatic production
