Vision system: One set of CCD inspection

Sport platform: Single-axis motor module

System communication: communicate with carrier board AVI inspection equipment

Processing dimension: 25X40mm~120X300mm

Processing thickness scope: 0.06-2.0mm

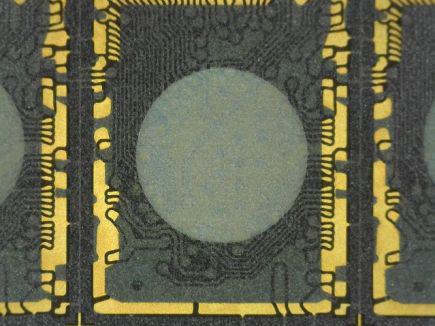

Defect inspection type:

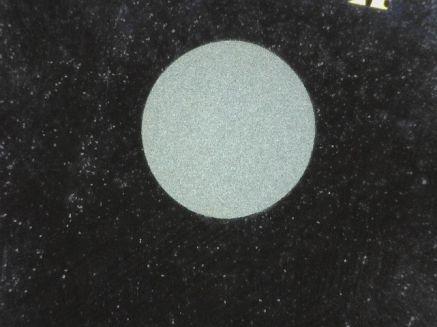

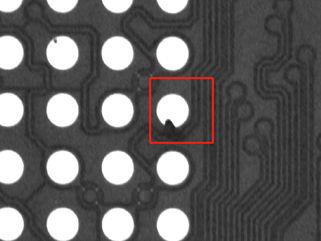

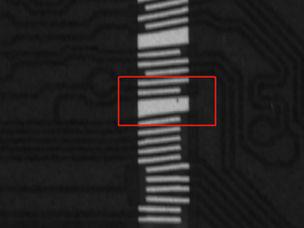

[1] Metal Defect - Discoloration, contamination, no gold plating, pad disappearance, copper exposure, dent, gold plating foreign objects, insufficient space, insufficient pad, burr, scratch, pit, ink adherence, etc., light-colored no gold plating (pink) must be detected

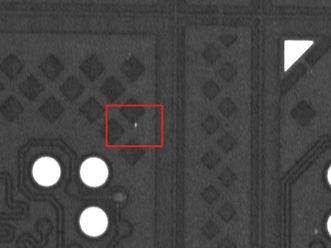

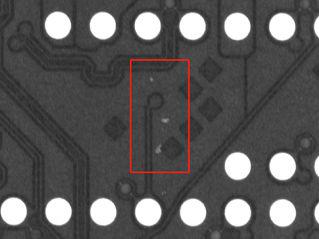

[2] SR Defect - Transparent foreign objects, scratches, crack, excess copper, SR clumping, uneven coating, void, spot, offset, delamination, SR bubble, AOI, whitening, SR DAM, etc.

It can automatically store high-definition defect images and can be magnified 10-80 times
