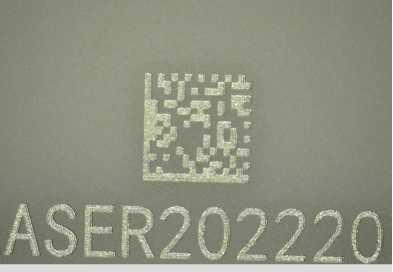

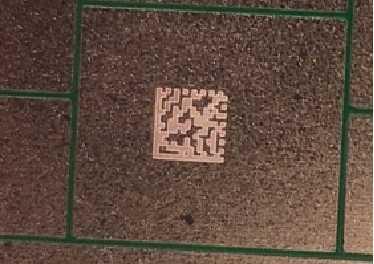

Used for laser marking characters, QR codes, and other contents on various ceramic and metal materials for traceability, equipped with automatic loading and unloading, coding, inspection, and other functions
| Project | Main technical index | Parameters |
| Laser system | Laser source | UV/optical fiber |
| Laser wavelength | 355nm/1064nm | |
| Average power | 5W/100W | |
| Equipment performance | Marking precision | ±0.10mm |
| Processing range | ≤200*200mm | |
| Processing efficiency | ≤1.5S/ QR code | |
| Drawing file format | DXF | |
| Use environment | Power supply specification | AC 380V/50HZ |
| Air source requirement | ≥0.6MPa | |
| Environment requirement | Temperature 15-35°C, humidity requirement <70%, no condensation | |
| Mainframe dimensions L*W*H | Approximately 2000*2000*1800mm |
| 1 | Compatible with multiple materials | Configure the laser according to the materials; be capable of marking QR code, plain code information on various ceramics, copper, nickel, gold, etc. | |
| 2 | Stable technical effect | No oxidation, discoloration, allowing for quick post-processing reading, location precision ±0.1mm | |
| 3 | Code reading inspection | Real-time inspection of QR code quality, which can ensure the uniqueness of QR codes. | |
| 4 | Multiple methods of processing | Manual and automatic processing can be selected and it can be connected to MES system for data exchange. | |
| 5 | Security and environmental protection | Efficient dust extraction structure and smoke purification system, which can reduce dust pollution. | |
